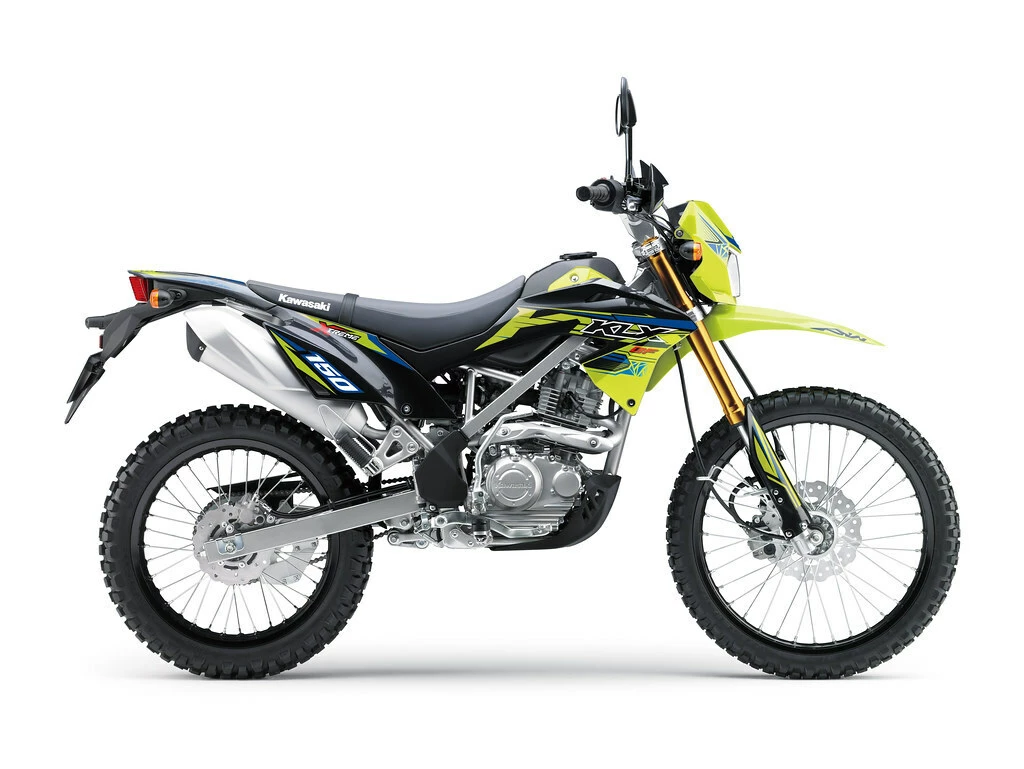

KLX150BF SE (MY21) – Kawasaki

A simple, yet reliable air-cooled single-cylinder engine and highly rigid, box-section perimeter frame are complemented by full size large-diameter wheels. The KLX150BF SE wheels (21” front and 18” rear) and inverted front fork to offer an even higher level of off-road performance. A simple yet reliable air-cooled single-cylinder engine with electric starter nestled in a sturdy, highly rigid steel perimeter frame offers easy-access, hassle-free fun. Complementing the strong engine and box-section perimeter frame, the 21” front and 18” rear wheels enable the KLX150BF SE to more easily tackle all obstacles encountered.

The KLX150BF SE offers a slim, compact package with a 870 mm seat height, comfortable riding position and low-effort controls, resulting in a bike that is easy to ride for new riders and satisfying for experienced riders. A new gold finish on the inverted front forks, new “X-TREME” graphics on the 2018 KLX150BF SE with the KX-inspired styling further adds to pride in ownership. Fat bar handlebars, black alunite rims, hand guards, engine protector and frame guards round-out the additional features on the KLX150SE SE version. The KLX150BF SE is also Learner Legal throughout Australia.

ENGINE

The engine in the KLX150BF offers a simple, easy-to-use and highly reliable power plant. The 144 cm³ 4-stroke air-cooled single-cylinder engine offers a lightweight power plant with both reliability and strong performance. Large Keihin NCV24 carburettor ensures smooth throttle response and excellent fuel economy.

5-speed transmission ensures there is a gear for every situation, enabling quick pick-ups when accelerating from a stop, and relaxed cruising ability when riding at higher speeds. Short final gearing care of large rear sprockets KLX150BF: 52/14 focuses the engine’s performance in the low-mid rpm range. This contributes to increased off-road performance, the stronger low-end enabling riders to continue moving forward even when navigating tricky off-road trails.

Engine guards help protect the engine when off-road riding. Frame guards help protect the frame when off-road riding. Hand guards help protect the hands when off-road riding.

SUSPENSION AND BRAKES

The 240 mm front petal disc is gripped by a twin-piston calliper and when combined with 190 mm rear petal disc and single piston calliper offers strong easy-to-control braking. The front and rear callipers use sintered brake pads for good wear characteristics. With 35 mm diameter inverted front fork offers a serious boost to off-road riding potential. Increased bottoming resistance eliminates bottoming on off-road trails. Wheel travel measures a large 175 mm. New gold finish on the inverted forks enhance the appearance of the 2018 KLX150BF SE model.

Single rear shock absorber with pressurised nitrogen gas is 5-way adjustable for preload, allowing riders to set the bike up for their weight. Uni-Trak rear suspension with 192 mm of wheel travel provides great road holding ability and bump absorption. Shock settings suit the large wheel sizes.

FRAME

Large 21″ front and 18″ rear tyres provide strong off road capability. Large wheels are better to overcoming obstacles encountered when taking the bike through off road trails or tackling the unpredictable roads of the urban environment. Sharp headlight design features a 35/35 W halogen bulb. A new meter visor contributes to the aggressive appearance. Simple analogue instrumentation includes a speedometer, odometer, fuel gauge, turn signals indicator, high beam warning light and neutral light.

A combination of form and function, the frame was also designed to be easy to grip with the legs, offering superior chassis control to the rider. Throttle grips are the same as those on our top-class MX racers. Raised pattern on half of the surface makes them easier to grip. Fat bar contributes to the aggressive, racy image while offering increased rigidity. The handlebar is rubber-mounted for reduced vibration transferred to the rider’s hands. Further, the upper triple clamp and handle clamp are separate pieces, making it easier to install an aftermarket handlebar.

The flat design of the tank and seat gives the rider greater freedom of movement when changing riding position, and facilitates sitting farther forward. Like our KX racers, the KLX150BF features a two-tone seat leather. With a capacity of 6.9 litres the fuel tank contributes to the KLX150BF long range, enabling riders to enjoy a full day of trail riding on a single tank. Exhaust emissions clear Euro-III emissions regulations. A larger catalyser (located at the silencer entrance) ensures emissions regulations continue to be met with the shorter gearing. Silencer feaures an oval cross section, giving it a sharp aggressive design.

LAMS APPROVED

Please consult your local authority before purchasing a motorcycle for learner use.
Each state and territory has its own regulations relating to the range of motorcycle models approved under the Learner Approved Motorcycle Scheme.
The manufacturer does not warrant or represent that the models shown are approved in each state and territory.
